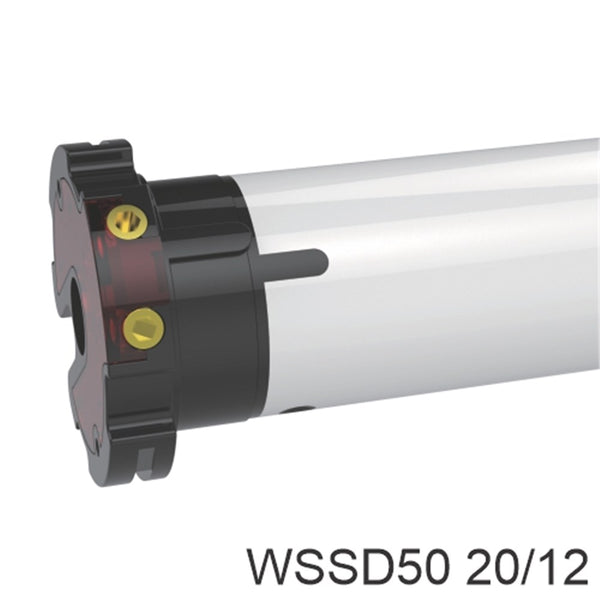

DC mechanical motors powered by battery switch
- Mechanical limit switch
- DC 2 core motor
- 45mm diameter motor

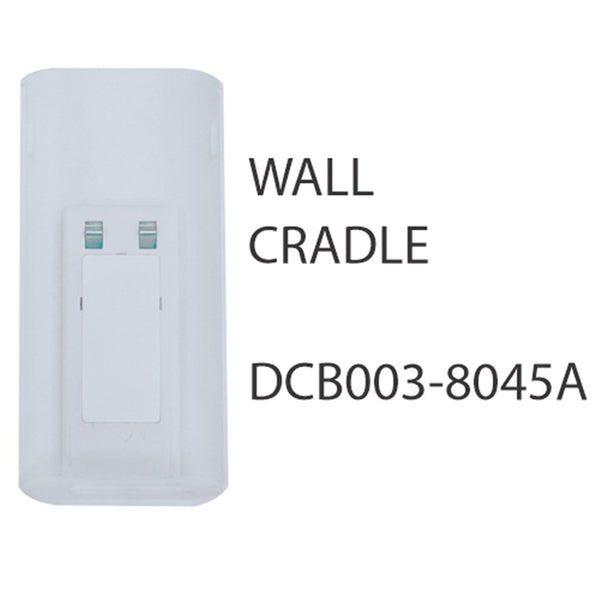

(Please Note: DCB003 And DCB003-R Wall Switch's Are sold separately.)
Comes with a 50mm round drive wheel.

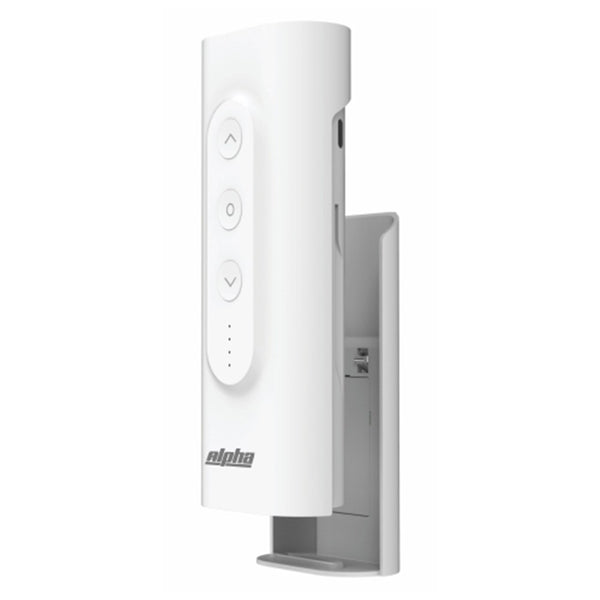

INDEPENDENT BATTERY UNIT
There are two Options available: DCB003 standard battery unit and DCB003-R which has a built-in receiver. Both battery units can provide power to the DC 12V tubular motors and recharged by a 5V 1A type-C charger. the buttons on the unit can control the connected tubular motor. Mechanical limit DC motor is only powered by the battery unit.
Technical
| RATED TORQUE (Nm) | 20 |
| OUTPUT SPEED (rpm) | 12 |
| NOMINAL CONSUMPTION (W) | 84 |
| NOMINAL VOLTAGE (V) | 12 |
| NOMINAL CURRENT (A) | 7 |
| RUNNING TIME (Min) | 12 |
| PROTECTION INDEX (IP) | 44 |
| TOTAL LENGTH (mm) | 600 |
| MAXIMUM TURNS | 27 |
| NET WEIGHT (kg) | 1.4 |
| INCLUDED C&D | A2404 |
| INCLUDED MOTOR BRACKET | A3415 |
