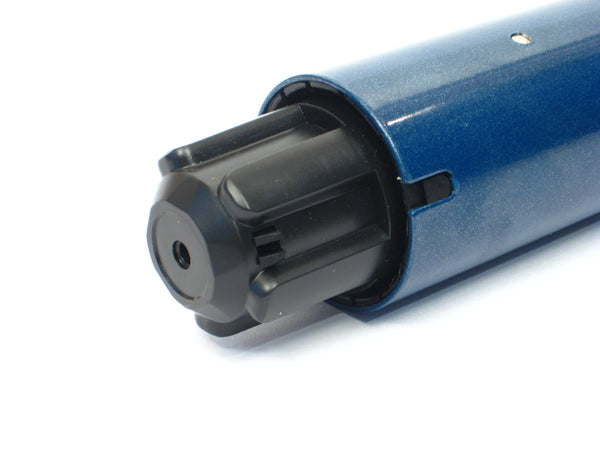

ALTUS 50 RTS 10Nm 17rpm 1037432

Regular price $628.00

Shipping & taxes calculated at checkout Shipping

Motor with integrated radio control. A classic multi-purpose unit to motorize a host of products (roller shutters, awnings, vertical blinds, etc.) Up, down and stop functions, and can be pre-programmed with "my" favorite

future upgrade available with the use of the somfy wind/sun sensor.


Roller Shutter motor selection chart

Altus 50 RTS Technical drawing

Altus 50 RTS wiring diagram

Altus RTS Installation Guide

Altus 50 RTS datasheet

Somfy Safety Sheet

folding arm awning motor chart

Technical Information



Radio Frequency 433.42   MHz
Capacity of memory 12 different transmitters plus 3 wireless sensors
Coding Rolling code 16 million of possibilities


Antenna Integrated
Consumption during operation 120   W
Minimum voltage 207   V
Maximum Voltage 253   V
Rated current 0.5   A
Nominal Voltage / Frequency 230V AC 50Hz


Capacity of the limit switch unit 250   turns
Type of limit switch unit Electronic
Type of head Star
Nominal Speed 17   rpm
Nominal Torque 10   Nm


Approval RCM
Protection Index IP44
Insulation class Class I


Plug in cable Grey LT Plug
Cable type PVC
Wire section 0,75   mm²
Color White
Wire Length 3   m
Number of wires of the cable 3


Length (L1) 555   mm
Basic crown for tube diameter 50 x 1,5   mm
Weight 1,985   Kg
Overall length (L3) 563   mm
Riveting position distance (L2) 540   mm
