Motor with integrated radio control. Designed for all types of roller shutter. Automatically retains shutter raising and lowering settings for complete opening and perfect closing every time.
Comfort
- Choose you own favorite position
- Automatic protection of your home with the sun sensor
- Centralization
- Sun protection and temperature management thanks to sun sensor
Roller shutter protection
- Increase of the lifetime thanks to somfy drive control
- In case of obstacle in the down direction
- Protection in case of frost
Security
- Self lock (rigid links) of the roller shutter to increase security ,and presence simulation
45mm diameter
Support
Oximo RTS Installation Guide
Oximo RTS Safety Sheet
Roller Shutter Motor Selection Chart
Oximo RTS Wiring Diagram
Technical Information
TECHNOLOGY
|
| Radio Frequency |
433,42 MHz |
| Capacity of memory |
12 different codes plus 3 wireless sensors |
| Coding |
Rolling code 16 million of possibilities |
ELECTRICAL
|
| Antenna |
Integrated antenna |
| Consumption during operation |
270 W |
| Minimum voltage |
207 V |
| Maximum Voltage |
244 V |
| Rated current |
1.2 A |
| Nominal Voltage / Frequency |
230V AC - 50Hz |
MECHANICAL
|
| Capacity of the limit switch unit |
200 turns |
| Type of limit switch unit |
Electronic |

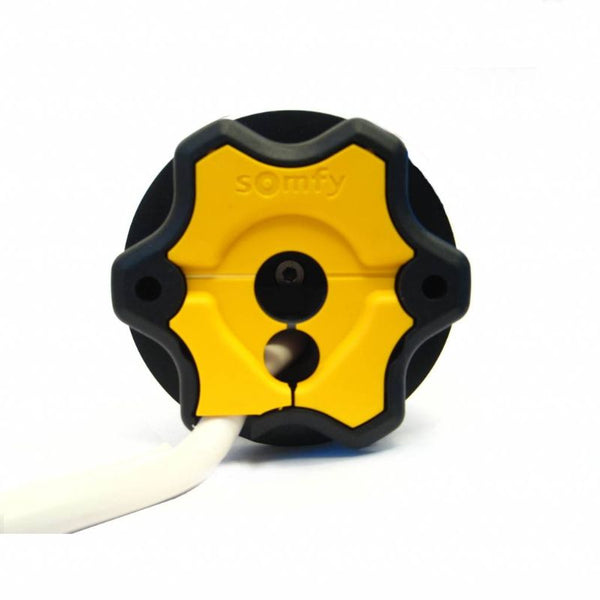

| Type of head |
Star |
| Nominal Speed |
17 rpm |
| Nominal Torque |
40 Nm |
| Repeatabilty |
<± 3 ° |
STANDARD
|
| Approval |
RCM |
| Protection Index |
IP 44 |
| Insulation class |
Class I |
CABLE
|
| Cable type |
PVC |
| Wire section |
0,75 mm² |
| Color |
White |
| Wire Length |
3 m |
| Number of wires of the cable |
3 |
DIMENSION
|
| Length (L1) |
675 mm |
| Basic crown for tube diameter |
50 x 1,5 mm |
| Weight |
2,8 Kg |
| Overall length (L3) |
683 mm |
| Riveting position distance (L2) |
660 mm |
