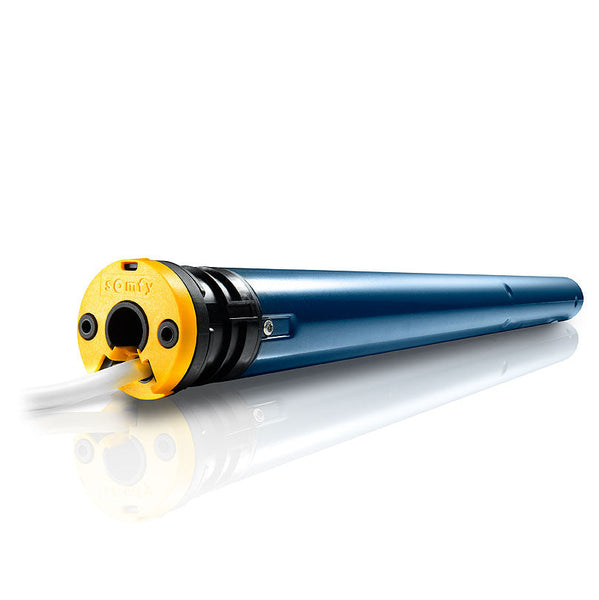

The Sonesse® 40 range is putting window coverings in motion with quiet precision. Ideal for variety of interior window covering applications.
Support
safety sheet
Sonesse 40 RTS install guide
sonesse 40 RTS Wire diagram
Sonesse 40 RTS Product data
Technical Information
TECHNOLOGY
|
| Radio Frequency |
433,42 MHz |
| Capacity of memory |
12 different codes plus 3 wireless sensors |
| Coding |
Rolling code 16 million of possibilities |
ELECTRICAL
|
| Antenna |
Integrated |
| Consumption during operation |
120 W |
| Minimum voltage |
207 V |
| Maximum Voltage |
253 V |
| Rated current |
0.98 A |
| Nominal Voltage / Frequency |
230V AC 50 Hz |
MECHANICAL
|
| Capacity of the limit switch unit |
250 turns |
| Type of limit switch unit |
Electronic |
| Type of head |
Round |
| Nominal Speed |
12 rpm |
| Nominal Torque |
9 Nm |
STANDARD
|
| Approval |
RCM |
| Protection Index |
IP44 |
| Insulation class |
Class II |
CABLE
|
| Cable type |
PVC |
| Wire section |
0.75 mm² |
| Color |
White |
| Wire Length |
3 m |
| Number of wires of the cable |
2 |
DIMENSION
|
| Length (L1) |
535 mm |
| Weight |
1.35 Kg |
| Overall length (L3) |
548 mm |
| Riveting position distance (L2) |
511 mm |
