Sonesse 40 RTS 6Nm 20rpm With Inline Connector 1002092

Regular price $401.00

Shipping & taxes calculated at checkout Shipping

The Sonesse® 40 range is putting window coverings in motion with quiet precision. Ideal for variety of interior window covering applications.

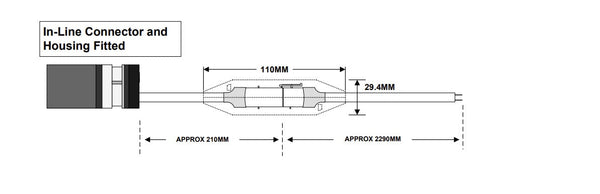

Comes with a 3 meter inline connector to make servicing the motor much easier.



Support

Sonesse 40 rts installation guide

Sonesse 40 rts datasheet

Sonesse 40 rts inline connector wiring



Technical Information



END PRODUCT

End product type Roller blinds, Roman blinds, Venetian blinds

TECHNOLOGY

Radio Frequency 433.42   MHz
Capacity of memory 12 different codes plus 3 wireless sensors
Coding Rolling code 16 million of possibilities

ELECTRICAL

Antenna Integrated
Consumption during operation 120   W
Minimum voltage 207   V
Maximum Voltage 253   V
Rated current 0.98   A
Nominal Voltage / Frequency 230V AC 50 Hz

MECHANICAL

Capacity of the limit switch unit 250   turns
Type of limit switch unit Electronic
Type of head Round
Nominal Speed 20   rpm
Nominal Torque 6   Nm

STANDARD

Approval RCM
Protection Index IP44
Insulation class Class II

CABLE

Plug in cable Inline Connector V2
Cable type PVC
Wire section 0.75   mm²
Color White
Wire Length 3   m
Number of wires of the cable 2

DIMENSION

Length (L1) 535   mm
Weight 1.25   Kg
Overall length (L3) 548   mm
Riveting position distance (L2) 511   mm

OTHER

Thermal time 4   mn
Noise level (according to Somfy measures) 45   dBA
Working temperature 0-60   °C
