| Code |
RB500 HS |
| Electrical data | |
| Power supply (Vac 50 Hz) |
230 |
| Absorption (A) |
2.2 |
| Power (W) |
450 |
| Performance data | |
| Speed (m/s) |
0.43 |
| Force (N) |
360 |
| Work cycle (cycles/day) |
450 |
| Operations in standby with battery |
20 |
| Dimensional and general data | |
| Protection level (IP) |
44 |
| Working temp. ( °C Min/Max) |
-20 ÷ +50 |
| Dimensions (mm) |
330x210x303 h |
| Weight (kg) |
11 |

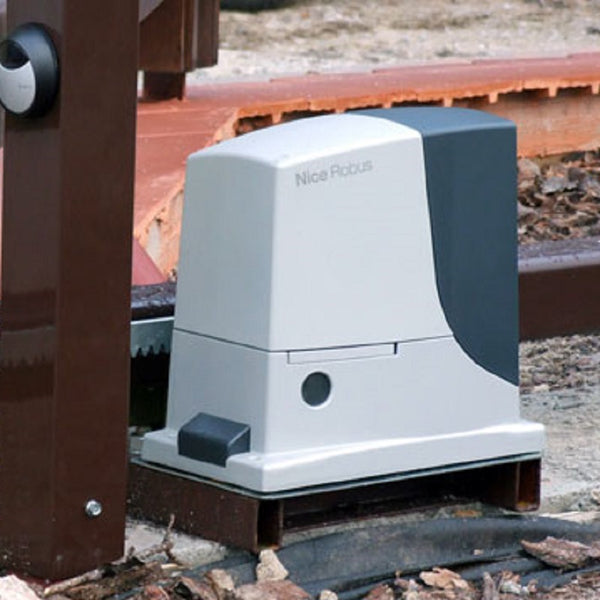

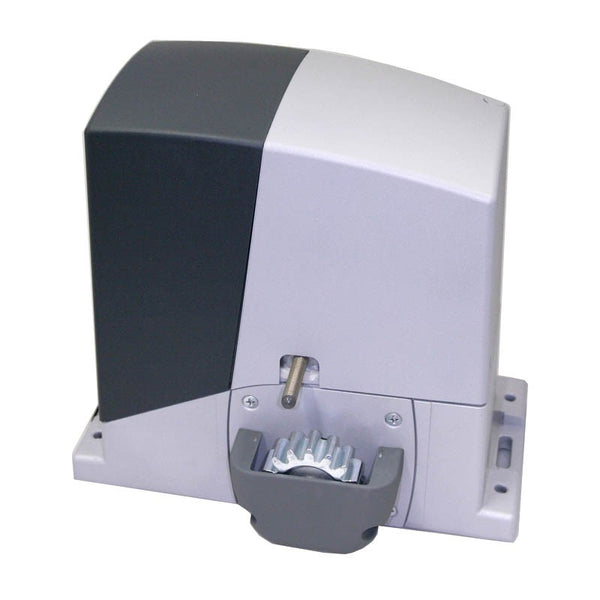

ROBUS RB500HS is a line of irreversible electromechanical gearmotors designed for automating sliding gates. These gearmotors are equipped with an electronic control unit and a connector for the SMXI or OXI radio remote control receiver (both optional). Electrical connections to external devices are simplified thanks to use of the “BLUEBUS”, a technique that allows for connecting multiple devices with only 2 wires. ROBUS devices work with electricity; in case of lack of power from the mains, it is possible to release them using a suitable key and manually move the gate or use the optional accessory: PS124 back-up battery that allows for completing certain maneuvers even when there is no mains power.
Kit Contains:
- 1 x ROBUS500 High Speed Motor
- 2 xTransmitters 433.92Mhz, 2 channel
- 4 x 1m Nylon Steel-reinforced gear rack
Support
Nice Robus500 HS Installation PDF
