Reliable Access Control for Roller Doors, Shutters, and Gates

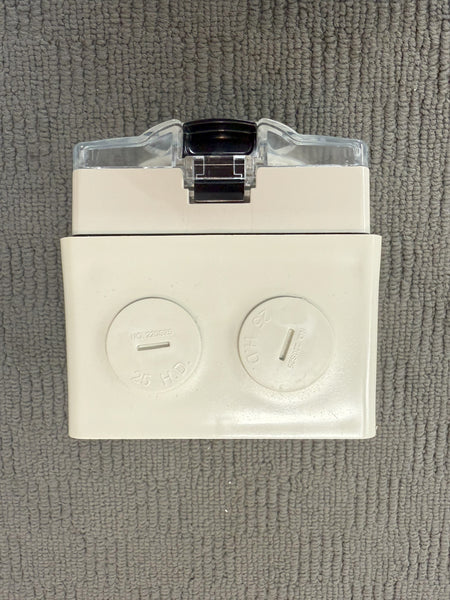

The Lock It Well KEWP1 Surface Mount Key Switch is a heavy-duty, outdoor-rated control solution designed for roller doors, security shutters, and automated gate systems. With a robust IP66 weatherproof rating, this key switch is engineered to withstand harsh Australian conditions — including rain, dust, and extreme temperatures — making it ideal for industrial, commercial, and high-use residential applications.
Key Features:
-
IP66 Weatherproof Housing
Fully sealed against dust and high-pressure water jets – perfect for outdoor use in all environments. -
Surface Mount Design
Easy to install on any flat surface – no need for recessed mounting or complex wiring enclosures. -
Secure Operation
3-position switch (Up – Stop – Down) with spring return to centre ensures safe and controlled operation. -
Standard 570 Oval Cylinder Compatible
Accepts Lockwood 570-style barrels (not included) for integration into existing master key systems. -
Heavy-Duty Construction
Tough ABS housing with stainless steel faceplate for long-term durability and vandal resistance. -
Wide Application Use
Compatible with roller doors, sectional doors, industrial shutters, and gate automation systems.
Specifications:
-
Model: KEWP1
-
Switch Type: Momentary spring-return (3-position: Up, Stop, Down)
-
Material: ABS body with stainless steel plate
-
Ingress Protection: IP66
-
Cylinder Compatibility: Standard 570 oval (sold separately)
-
Mounting: Surface mount
-
Wiring: Screw terminal connection (installer required)
Applications:
-
Warehouses
-
Commercial complexes
-
Industrial facilities
-
Garages and loading bays
-
Gated properties
